PD-1 Blockade Overcomes Adaptive Immune Resistance in Treatment with Anchored-GM-CSF Bladder Cancer Cells Vaccine

Xinji Zhang1, Xiaojun Shi2, Jinlong Li3, Lijun Mo3, Zhiming Hu3, Jimin Gao4, Shihao Wu1* Corresponding address, Zhaolin Long1* Corresponding address

1. Department of Urology, Shunde Hospital, Southern Medical University, Guangdong, 528300, China
2. Department of Urology, Nanfang Hospital, Southern Medical University, Guangzhou, 510515, China
3. Institute of Biotherapy, School of Laboratory Medicine and Biotechnology, Southern Medical University, Guangzhou, 510515, China
4. Zhejiang Provincial Key Laboratory of Medical Genetics, School of Life Sciences, Wenzhou Medical University, Wenzhou, 325035, China
*those authors contributed equally

This is an open access article distributed under the terms of the Creative Commons Attribution (CC BY-NC) license (https://creativecommons.org/licenses/by-nc/4.0/). See http://ivyspring.com/terms for full terms and conditions.
How to cite this article:
Zhang X, Shi X, Li J, Mo L, Hu Z, Gao J, Wu S, Long Z. PD-1 Blockade Overcomes Adaptive Immune Resistance in Treatment with Anchored-GM-CSF Bladder Cancer Cells Vaccine. J Cancer 2018; 9(23):4374-4381. doi:10.7150/jca.25423. Available from http://www.jcancer.org/v09p4374.htm

Abstract

Purpose: To investigate whether PD-L1 mediated adaptive resistance could occur in treatment with Anchored-GM-CSF vaccine and whether PD-1 blockade combined with Anchored-GM-CSF vaccine could induce a greater anti-tumor immune response than either immunotherapy alone.

Materials and Methods: After establishing long-established subcutaneous metastasis bladder cancer models, mice were treated with Anchored-GM-CSF vaccine and/or anti-PD-1 antibody. T-lymphocyte-cytotoxicity, flow cytometric analysis, immunohistochemical, immunofluorescence staining, CD8+ -T cell apoptosis and enzyme-linked immunosorbent assays were performed to evaluate the efficacy of combination therapy with anchored-GM-CSF vaccine and PD-1 blockade and to explore the related mechanism.

Results: Anchored-GM-CSF vaccine could significantly increase the number of mature DCs and up-regulate PD-L1 expression dependent on IFN-γ released from CD8+ T cells. Anchored-GM-CSF vaccine combined with anti-PD-1 antibody could effectively inhibit tumor growth and even cause regression of the established tumor. More CD4+ and CD8+ T cells appeared at tumor sites and in peripheral blood in the combination therapy group than in the control groups. Splenocytes from mice of the combination therapy group exhibited the most potent cytotoxicity to MB49 cells. Apoptotic assays showed that PD-1 blockade could significantly reduce CD8+ T cells apoptosis.

Conclusions: Anchored-GM-CSF vaccines and anti-PD-1 antibodies have synergistic effects in metastatic bladder cancer treatment. PD-1 blockade can overcome immune resistance in treatment with the Anchored-GM-CSF vaccine, while Anchored-GM-CSF vaccine can enhance the efficacy of PD-1 blockade therapy.

Keywords: program death ligand 1, program death receptor 1, GM-CSF, bladder cancer, vaccine

Introduction

Immunotherapy has been considered a promising approach to activating therapeutic antitumor immunity. Currently, tumor immune resistance and checkpoint blockade are under intense investigation. As reported by several studies, the most promising approaches to activating therapeutic antitumor immunity are checkpoint inhibitors and tumor vaccines(1).

Program death receptor-1 (PD-1) / program death ligand 1 (PD-L1) signaling plays an important role in tumor immune resistance (2). PD-L1 is expressed by tumor cells and antigen presenting cells (APCs), and PD-1 is mainly expressed on activated T cells (3). PD-L1/PD-1 interaction can lead to anergy or death of activated effector T cells, thereby blunting anti-tumor immune responses (4). Several clinical studies have demonstrated that PD-1/PD-L1 blockade could produce an effective clinical efficacy, but the response rate has been unsatisfactory (5). The possible reasons for this result might be associated with a lack of tumor infiltrating lymphocytes (TILs) and PD-L1 expression in the tumor microenvironment (TME) (6,7).

Cytokines have usually been used as adjuvants for vaccines to augment the host immune response(8). However, inducing the desired antitumor immunity by traditional methods is difficult due to the high cytokine metabolic rate, low transgene expression, low gene transfer efficiency and biosafety concerns (9). Thus, we recently developed a technology that rapidly and irreversibly immobilizes streptavidin (SA) tagged bioactive molecules on the surface of biotinylated MB49 bladder cancer cells (10), and proved a cytokine-modified MB49 bladder cancer cell vaccine could induce specific antitumor immunity, which effectively inhibited the growth of metastatic bladder cancer in mouse model (9). Although the granulocyte-macrophage colony-stimulating factor-anchored (Anchored-GM-CSF) vaccine can induce functional CD8+ T cell responses in the early stage of tumor growth, and the treated mice experienced tumor regression, those tumors slowly regrew during long-term observation. The possible reason for this result might be immune evasion by the existing tumor. Tumor-infiltrating CD8+ T cells might gradually become dysfunctional by expressing PD-1 within the TME (11-13). In addition, PD-L1 can be expressed on the surface of cancer cells in response to IFN-γ produced by effector T cells(14,15). This process has been termed adaptive immune resistance (16). The PD-L1/PD-1 interaction might result in the attenuation of anti-tumor immune responses and promote tumor growth (15).

Therefore, a better approach to improve the proliferation and effector functions of CD8+ T cells and inhibit the growth of bladder cancer would be to combine PD-1/PD-L1 blockade with a cancer vaccine that can increase the number of tumor-specific TH1 lymphocytes. In this study, we investigated whether PD-1/PD-L1 mediated immune resistance occurred following treatment with the Anchored-GM-CSF vaccine and whether PD-1 blockade combined with the Anchored-GM-CSF vaccine could induce a strong specific antitumor immune response against bladder cancer.

Materials and methods

Animals and cells

C57BL mice (6-8 weeks) were purchased from experimental animal center of Southern Medical University (Guangzhou, China). The MB49 cell line was a carcinogen induced transitional cell carcinoma derived from C57BL/6 male mice. The MB49 cells were cultured in RPMI1640 containing 10% fetal bovine serum, 1% penicillin/streptomycin in a 5% CO2 humidified incubator. MycoplasmaOUT (Genloci) was used to protect the cells against mycoplasma contamination. The MB49 cells have been authenticated and tested for mycoplasma contamination every 6-12 months. All animal studies were performed in accordance with the university guidelines of experimental animals (Ethical number: L2016045). SA-GM-CSF fusion protein and SA-GFP fusion protein were prepared by our laboratory (17).

Vaccine preparation and biological activity assay

As described in our previous study (9), MB49 bladder cancer cells in the exponential growth stage were fixed in 30% ethanol (volume/volume) for 30 minutes and then incubated with 10 mM EZ-Link Sulfo-NHS-LC-Biotin (Pierce Biotechnology) for 1 hour at room temperature. The biotinylated MB49 cells were incubated with SA-mGM-CSF. The expression of SA-mGM-CSF on the surface of MB49 cells was assayed by flow cytometry after staining with PE-labeled anti-mouse GM-CSF monoclonal antibody. The bioactive assay of SA-GM-CSF immobilized on the surface of MB49 cells was performed according to our previously described method (10).

Animal experiments

C57BL/6 mice were injected in the hind leg with 1×106 MB49 cells to establish a subcutaneous tumor model. To evaluate the immunotherapy induced by Anchored-GM-CSF vaccine, mice were randomly divided into four groups (Anchored-GM-CSF, Soluble GM-CSF, Ethanol-fixed MB49 cells and PBS). Once palpable tumors developed (8 days after cell injected), Experimental group was injected subcutaneously with Anchored-GM-CSF vaccine (1×106 cells/100 µl of PBS) every 4 days for a total of 5 doses. The other three groups received soluble SA-GM-CSF (100 ng/100 µl of PBS), ethanol-fixed MB49 cells (1×106 cells/100 µl of PBS) or PBS (100 µl) every 4 days for a total of 5 doses.

To demonstrate whether PD-1 blockade can enhance the antitumor effect induced by the GM-anchored vaccine, mice were randomly divided into four groups (Anchored-GM-CSF+Anti-mPD-1 group, Anchored-GM-CSF+IgG, Anti-mPD-1 and IgG). For the PD-1 blockade experiments, 100 µg of anti-PD-1 antibody (eBioscience, catalog number: 16-9985) or IgG (isotype control, eBioscience, catalog number: eB149/10H5) was injected intraperitoneally (i.p.) into each mouse every third day after Anchored-GM-CSF vaccine treatment. The subcutaneous tumor volume was calculated by the formula [π/6(w1×w2×w2)], where w1 represents the largest and w2 represents the smallest tumor diameter (10). In some experiments, 100 µg/mouse of anti-IFN-γ antibody (eBioscience, XMG1.2) was injected i.p. twice per week. Mice were sacrificed once tumors exceeded 1.5 cm3.

PD-L1 upregulation by IFN-γ stimulation (in vitro)

MB49 cells were co-cultured with IFN-γ (25 ng/ml, Peprotech) or CD8+ T cells were separated from MB49 cell-bearing mice using CD8 Microbeads (Miltenyi Biotec, Auburn, CA) at a ratio of 1:1. These cells were cultured in the presence or absence of anti-IFN-γ antibody (5 μg/ml, eBioscience, XMG1.2). After 5, 10, 15 or 30 hours, the cells were stained with PE-labeled anti-mPD-L1 antibody, and PD-L1 expression was measured by flow cytometry.

Flow cytometry analysis

On day 28 after establishment of the subcutaneous tumor model, splenocytes or blood was isolated from each group. After lysing red blood cells, the remaining cells were stained with FITC-labeled anti-mCD11c (catalog number: 11-0114), PE-labeled anti-mCD80(catalog number: 12-0801), FITC-labeled anti-mCD4 (catalog number: 11-0042), or APC-labeled anti-mCD8 (catalog number: 17-0081) (all from eBioscience) for 30 minutes at room temperature. The positive cells were measured by flow cytometry.

Immunohistochemistry (IHC)

On day 28 after establishment of the subcutaneous tumor model, subcutaneous tumor tissues were collected from each group The frozen sections were then fixed with 4% paraformaldehyde and embedded in paraffin. Paraffin sections (4-5 µm) were deparaffinized and rehydrated. After treatment with hydrogen peroxide, the sections were incubated with anti-mCD4 (Abcam, catalog number: EPR19514) and anti-mCD8 antibodies (eBioscience, catalog number: 14-0195) according to the instructions of the Rabbit specific HRP/DAB (ABC) Detection IHC Kit (Abcam) and restained with hematoxylin and eosin.

Immunofluorescence analyses

Tumor tissues were collected from each group. After antigen retrieval, the sections were incubated with rabbit anti-mouse PD-L1 (Abcam, catalog number: MIH6), rabbit anti-mouse PD-1 (Abcam, catalog number: RMP1-14) and /or rat anti-mouse CD8 (eBioscience, catalog number: 14-0195) antibodies. Then secondary antibodies (Alexa Fluor 647-labeled goat anti-rabbit Ab for PD-1 and PD-L1, Alexa Fluor 488-labeled goat anti-rat Ab for CD8) were applied. Slides were washed three times and mounted with a Vectashield DAPI-containing kit. The expression of PD-L1, PD-1 and CD8 in the TME was observed using a fluorescence microscope (Nikon, Eclipse E800).

Tumor-specific cytotoxicity assay (CTL)

Splenocytes were isolated from each group on day 28 after tumor injection and then stimulated by MB49 cells in the presence of human interleukin-2 (IL-2) for 5 days. These splenocytes served as effector cells and were adjusted to 1×105 cells/ml. MB49 cells served as target cells and were adjusted to a density of 1×104 cells /mL. Both cell types were added to a 96well plate at the desired effector-to-target ratios. After incubation for 4 hours, the supernatant was collected. The lactate dehydrogenase activity was measured by the CytoTox 96 nonradioactive cytotoxicity assay.

Enzyme-linked immunosorbent assay (ELISA)

CD8+ T cells were isolated from the splenocytes of each group using CD8 Microbeads (Miltenyi Biotec, Auburn, CA). MB49 cells were added to CD8+ T cells at a ratio of 5:1 and incubated for 24 hours at 37℃. The concentration of IFN-γ was measured by ELISA (eBioscience).

Apoptotic assay

CD8+ T cells were isolated from splenocytes of the Anchored-GM-CSF vaccine group (on day 28 after tumor cell injection) using immunomagnetic microbeads. CD8+ T cells were cultured with MB49 cells on 24-well plates and treated with anti-PD-1 or IgG antibody for 72 hours. Then, cell apoptosis was measured by flow cytometry using an annexin V/FITC and propidium iodide (PI) apoptosis detection kit (BD Bioscience). Annexin V(+)/PI(-) and annexin V(+)/PI(+) indicated apoptosis and necrosis, respectively.

Statistical analysis

All experimental group values were analyzed from representative experiments. The differences in tumor volume between groups were compared using repeated measures design. Statistical analyses of flow cytometry, ELISA, IHC and Immunofluorescence data were determined by one-way ANOVA. Statistical analysis was performed using SPSS (version 19.0). P < 0.05 was considered as indicative of statistical significance.

Results

Immobilization and biological activity of SA-GM-CSF

Flow cytometric analysis showed that SA-GM-CSF could be efficiently anchored on the surface of MB49 cells (Figure 1a). The bioactivity of SA-GM-CSF immobilized on the surface of MB49 cells was assessed by bone marrow cell proliferation, with SA-GFP as a negative control. The results demonstrated that SA-mGM-CSF anchored on the surface of MB49 cells retained bioactivity in a dose dependent manner (Figure 1b).

 Figure 1

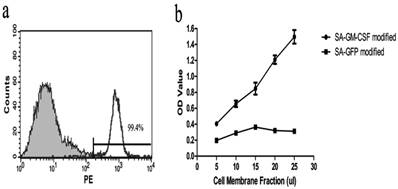

Immobilization and biological activity of SA-mGM-CSF on the surface of MB49 cells. a. Results of the flow cytometry analysis showed that SA-mGM-CSF could be efficiently anchored on the surface of MB49 cells, with unbiotinylated MB49 cells as a negative control. b. The biological activity of GM-CSF on the surface of MB49 cells was assessed, with SA-GFP as a negative control. OD: optical density.

J Cancer Image (Click on the image to enlarge.)

Anchored-GM-CSF vaccine induced DC activation, but failed to induce regression of the established tumor

To assess the effect of Anchored-GM-CSF vaccine on DC maturation, mature DCs (CD11c+ CD80+) in the spleens of mice were measured by flow cytometry. The results showed that the Anchored-GM-CSF vaccine could significantly increase the number of mature DCs population (Figure 2a,b).

According to the results, treatment with the Anchored-GM-CSF vaccine alone modestly slowed tumor growth but failed to induce the regression of established tumors (Figure 2c).

Anchored-GM-CSF vaccine treatment increased PD-L1 expression depending on IFNγ

First, CD8+ T cells were isolated from the spleens of untreated C57BL/6 mice, the isolation rate was 98.5% (Figure 3a). To confirm the role of IFN-γ in the regulation of PD-L1 expression in tumor cells (16), MB49 cells were cultured with CD8+ T cells or IFN-γ for 72 hours. The results showed that both CD8+ T cells and IFNγ could up-regulate PD-L1 expression on MB49 cells, and blocking IFNγ could inhibit the upregulation of PD-L1 expression (Figure 3b). In vivo study, we isolated CD8+ T cells and noted an increased level of IFNγ secretion from CD8+ T cells in Anchored-GM-CSF vaccine treatment group by ELISA (Figure 3c). We also found that Anchored-GM-CSF vaccine could upregulate the expression of PD-L1 within the TME, but the upregulated expression of PD-L1 could be significantly diminished when treated with IFNγ neutralizing antibody (Figure 3d, e). Thus, upregulation of PD-L1 was triggered in an IFNγ-dependent mechanism.

PD-1 blockade enhanced the therapeutic efficacy of the Anchored-GM-CSF vaccine

Combination treatment with the Anchored-GM-CSF vaccine and PD-1 blockade produced a better anti-tumor response in vivo, significantly delaying tumor growth (P<0.05) (Figure 4a). Meanwhile, anti-IFNγ antibody abrogated the anti-tumor response induced by Anchored-GM-CSF vaccine or anti-PD-1, which was consistent with the adaptive immune resistance mechanism (Figure 4a).

To further evaluate the effect of the combined treatment on different T-cell subsets, CD4+ and CD8+ T lymphocytes in peripheral blood and the TME were detected by flow cytometry or IHC. The results showed that CD4+ and CD8+ T cells in the Anchored-GM-CSF vaccine combined with anti-PD-1 group were notably increased compared to those in the other groups (Figure 4b,c,e,f).

To investigate the specific antitumor immunity induced by combination therapy, splenocytes served as effector cells and MB49 cells served as target cells. The percent cytotoxicity of tumorspecific cytotoxic T lymphocytes in each group was determined by the lactate dehydrogenase activity level. (17) The results of the CTL assay showed that PD-1 blockade could significantly enhance the tumor-specific cytotoxic activities of the Anchored-GM-CSF vaccine relative to those of the Anchored-GM-CSF vaccine monotherapy (Figure 4d).

PD-1 blockade enhanced the antitumor efficacy of Anchored-GM-CSF therapy by reducing apoptosis of

PD-1/PD-L1 signaling might promote T cells apoptosis (18). To define PD-1 expression on the surface of CD8+ T cells in the TME after combined treatment, tumor tissues were collected from each group. The results of the immunofluorescence assay showed that the number of PD-1+CD8+ T cells was significantly increased after combined treatment (Figure 5a,b). These findings revealed that PD-1 blockade could enhance the therapeutic efficacy of the Anchored-GM-CSF vaccine. To explore the mechanism, we further investigated the effect of combined treatment on CD8+ T cell apoptosis and showed that PD-1 blockade could significantly decrease CD8+ T cell apoptosis (Figure 5c,d).

 Figure 2

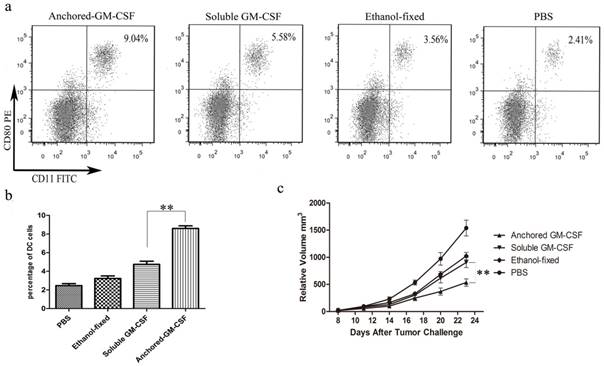

Anchored-GM-CSF vaccine increased DC activation and induced an anti-tumor response. a and b. After Anchored-GM-CSF vaccine treatment, splenocytes were isolated from each group and stained with PE-labeled anti-mCD11c and FITC-labeled anti-mCD80 antibodies. The CD11c+CD80+ DCs were considered mature dendritic cells and were measured by flow cytometry. c. The tumor volume was recorded. The anchored-GM-CSF vaccine could effectively reduce tumor growth compared with control treatment. All experiments were replicated at least 3 times. **p<0.01.

J Cancer Image (Click on the image to enlarge.)
 Figure 3

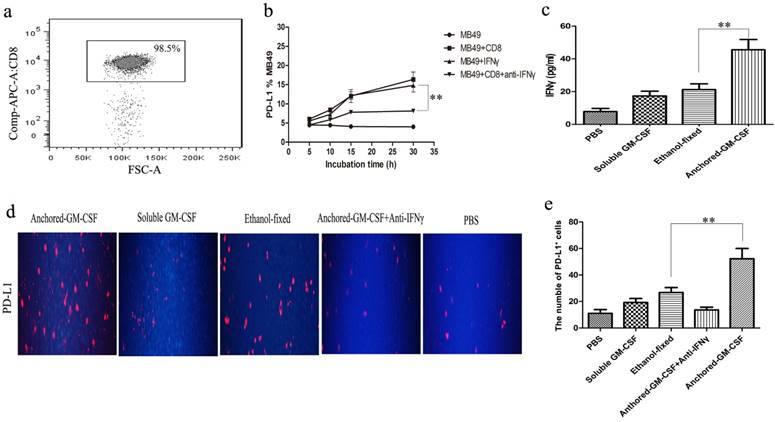

Anchored-GM-CSF vaccine up-regulated PD-L1 expression depending on IFNγ. a. After Anchored-GM-CSF vaccine treatment, CD8+ T cells were isolated from the spleens of untreated C57BL/6 mice by CD8a (Ly-2) MicroBeads and CD8+ T cells were detected by flow cytometry. b. CD8+ T cells could upregulate PD-L1 expression on MB49 cells in an IFNγ -dependent manner in vitro. c. CD8+ T cells were collected from each group, and the concentrations of serum IFNγ in each group were measured by ELISA. d and e. Tumor tissues from mice treated with Anchored-GM-CSF vaccine, Soluble GM-CSF, Ethanol-fixed, PBS, or Anchored-GM-CSF vaccine administered with neutralizing IFNγ antibody were harvested and stained with anti-mPD-L1 antibodies. Then, a secondary antibody was used to assess PD-L1 positive cells. Blinded quantitation was performed in 10 different fields at 40× magnification. All experiments were replicated at least 3 times. **p<0.01.

J Cancer Image (Click on the image to enlarge.)
 Figure 4

Anchored-GM-CSF vaccine combined with PD-1 blockade enhanced the T lymphocyteresponse and reversed adaptive immune resistance. a. The tumor volume in each treated group was recorded after tumor challenge. Anchored-GM-CSF vaccine treatment combined with anti-PD-1 could effectively inhibit tumor growth compared to Anchored-GM-CSF vaccine or anti-PD-1 monotherapy alone. Anti-IFNγ antibody abrogated tumor regression. b. Gross image of the tumor in each group. c, d, f and g. CD4+ and CD8+ T lymphocytes in blood and the TME were measured by flow cytometry and IHC. d. Splenocytes were isolated from each group and stimulated by hIL-2. MB49 cells served as target cells. Supernatants were collected for the nonradioactive cytotoxicity assay. All experiments were replicated 3 times. *p<0.05, **p<0.01.

J Cancer Image (Click on the image to enlarge.)

Discussion

In this study, we demonstrate that combination therapy with PD-1 blockade and Anchored-GM-CSF vaccine could synergistically induce anti-tumor immune responses and significantly promote tumor regression. We found that treatment with Anchored-GM-CSF alone could promote DC activation and enhance the infiltration of effector T-cells into tumor tissue, but could not completely inhibit tumor growth. The tumor microenvironment contains a strong immunosuppressive network. PD-1/PD-L1 signaling is an important immune evasion mechanism of the established tumor. The results of further studies showed that PD-L1 expression in the TME and PD-1 expression on CD8+ T cells were significantly upregulated after Anchored-GM-CSF vaccine treatment. In this study, we tested whether it is possible to optimize our vaccination platform by blocking the PD-1/PD-L1 axis.

PD-1/PD-L1 signaling may mediate immune resistance by promoting CD8+ T cells apoptosis (18). In the early stage of tumor growth, immunogenic cancer cells can induce functional CD8+ T cell responses (19). With tumor growth, the establishment of a tumor microenvironment in which cancer cells are embedded in a suppressive tumor stroma, greatly impaires antitumor immunity (20). The proliferation and functions of CD8+ T cells are usually impaired by PD-1/PD-L1 interactions (15). Because of the existence of this immune resistance mechanism, we administered a combination treatment with anti-PD-1 antibody and the Anchored-GM-CSF vaccine. The results showed that tumor growth could be effectively inhibited. The combination therapy improved the proliferation and function of CD8+ T cells, and CD8+ T cells apoptosis was also decreased (Figure 4 and Figure 5c,d).

At present, the adaptive immune resistance mechanism is being investigated. IFN-γ is a known mediator of PD-L1 expression in cancer cell lines. It is intriguing to explore whether similar mechanisms underlie tolerance to vaccine-based cancer immunotherapy. In the in vivo and in vitro studies, we found that PD-L1 expression was upregulated by IFNγ produced by CD8+ T cells. Anti-IFNγ antibody significantly inhibited PD-L1 expression on MB49 cells in vitro and abrogated the regression of tumors in vivo (Figure 3 and Figure 4a).

PD-1/PD-L1 blockade monotherapy has already been successfully administrated in various cancers and has reinvigorated interest in the treatment of metastatic bladder cancer (21). Several clinical studies have demonstrated that PD-1/PD-L1 blockade could produce a potent anti-tumor effect (22,23). However, the response rates have been unsatisfactory (approximately 20%) (5). A possible reason for this result might be the lack of TILs. In addition, MB49 tumor cells express PD-L1 (Figure 3d,e), which increases with tumor growth (20). Therefore, anti-PD-1 monotherapy did not effectively inhibit tumor growth. An effective immunotherapy should combine checkpoint blockade with a driver of tumor-specific immunity. The Anchored-GM-CSF vaccine can increase tumor-specific IFN-γ-secreting TH1 lymphocytes. Therefore, PD-1 blockade combined with Anchored-GM-CSF vaccine could effectively inhibit the tumor growth and improve the tumor regression rate (Figure 4).

Overall, this study demonstrates that Anchored-GM-CSF vaccine and PD-1 blockade have synergistic effects in the treatment of bladder cancer. PD-1 blockade can overcome immune resistance during treatment with Anchored-GM-CSF vaccine, while Anchored-GM-CSF vaccine can enhance the efficacy of PD-1 blockade therapy. Based on our preclinical evidence, a clinical trial is currently ongoing to evaluate the efficacy of the Anchored-GM-CSF vaccine against human bladder cancer. This study may also provide a preclinical basis for applying the combination therapy with Anchored-GM-CSF vaccine and PD-1 blockade in human bladder cancer.

 Figure 5

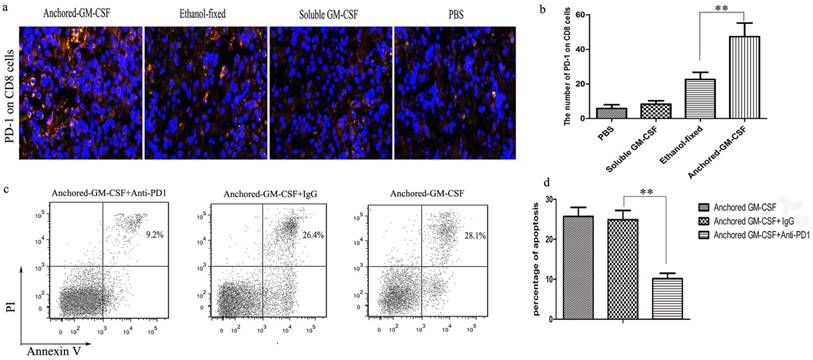

PD-1 blockade reduced CD8+ T-cells apoptosis. a and b. PD-1 expressed in the TME was measured by immunofluorescence. CD8+ T-cells were detected using AlexaFluor 488 staining via the green channel and PD-1+ cells were detected using AlexaFluor 647 staining via the red channel. Yellow fluorescence indicates PD-1+CD8+ T-cells. c and d. CD8+ T cells were separated from the tumor tissues of mice in Anchored-GM-CSF vaccine group on day 28 after the model was established. These T cells were cultured with MB49 cells on 24-well plates and treated with anti-PD-1 or IgG antibody for 72 hours. Then the cells were subjected to an annexin-V and PI binding assay. The numbers in the graph indicate the percentage of Annexin V(+)/PI(-) and Annexin V(+)/PI(+) cells. All experiments were replicated 3 times. **p<0.01

J Cancer Image (Click on the image to enlarge.)

Abbreviations

SA: streptavidin; GM-CSF: granulocyte-macrophage colony-stimulating factor; CTL: cytotoxicity of T lymphocyte; DCs: dendritic cells; PD-1: program death receptor-1; PD-L1: program death ligand 1; IHC: immunohistochemistry; ELISA: enzyme-linked immunosorbent assay; TME: tumor micro environment.
