J Cancer 2019; 10(2):378-387. doi:10.7150/jca.27976

Research Paper

The Effect of HER2 Single Nucleotide Polymorphisms on Cervical Cancer Susceptibility and Survival in a Chinese Population

Yan Gao1,2*, Xiuwu Tang3*, Jieqin Cao4*, Rong Rong5, Zhengmin Yu6,7, Yang Liu1, Yan Lu1, Xiaowen Liu6,7, Lei Han6,7, Jiting Liu2, Jun Zhang1, Ming Xu6,7 Corresponding address, Fang Liu1 Corresponding address

1. Institute of Suzhou Biobank, Suzhou Center for Disease Prevention andControl, Suzhou 215004, China
2. School of Public Health, Medical College of Soochow University, Suzhou 215123, China
3. Department of Gynecology and Obstetrics, the First Affiliated Hospital of Soochow University, Suzhou 215006, China
4. Department Gerontology, Liuhe Hospital Affiliated to Medical College of Yangzhou University, Nanjing 211500, China
5. DepartmentofPathology,theFirstAffiliatedHospitalofNanjingMedicalUniversity, Nanjing 210029,China
6. Department of Occupational Disease Prevention, Jiangsu Provincial Centerfor Disease Control and Prevention, Nanjing 210009,China
7. Public Health Research Institute of Jiangsu Province, Nanjing 210009, China.
*These authors contributed equally to this article.

This is an open access article distributed under the terms of the Creative Commons Attribution (CC BY-NC) license (https://creativecommons.org/licenses/by-nc/4.0/). See http://ivyspring.com/terms for full terms and conditions.
How to cite this article:
Gao Y, Tang X, Cao J, Rong R, Yu Z, Liu Y, Lu Y, Liu X, Han L, Liu J, Zhang J, Xu M, Liu F. The Effect of HER2 Single Nucleotide Polymorphisms on Cervical Cancer Susceptibility and Survival in a Chinese Population. J Cancer 2019; 10(2):378-387. doi:10.7150/jca.27976. Available from http://www.jcancer.org/v10p0378.htm


Background: Cervical cancer (CCa) is a multifactorial gynecologic disease worldwide. Effects of HER2 polymorphisms, especially those in exonic region, have been investigated in many gynecologic diseases. In this study, we evaluated the influence of functional HER2 polymorphisms on susceptibility and survival of CCa in a Chinese population.

Methods: We genotyped the HER2 exonic polymorphisms by TaqMan in both case-control study (413 CCa patients vs. 396 controls) and survival study (413 CCa patients). Logistic regression and Cox regression were adopted to evaluate the genetic association with the risk and outcomes of CCa, respectively.

Results: In the case-control study, there was no significant difference between patients and controls in either HER2 rs1136201 or rs1058808. However, when combined, these two polymorphisms demonstrated a significant hazardous effect for CCa (P = 0.012). Besides, number of variants was also influential (P trend =0.002). In survival analysis, dominant model of rs1136201 and co-dominant modelof rs1058808 were significantly associated with the survival (P = 0.037 and P =0.028). The combination of rs1136201 and rs1058808 also negatively impacted CCa survival (P = 0.009). Cox regression further revealed the significance of the polymorphism combination (β = 0.38, P = 0.025, HR= 1.47, 95%CI = 1.05-2.05). Functional assay of these polymorphisms demonstrated that rs1058808 G allele was associated with stronger expression of HER2 gene.

Conclusions: Our results suggested that the combination of HER2 rs1136201and rs1058808 was significantly associated with the susceptibility of CCa. Besides, this combination of polymorphism s also substantially impacted the survival of CCa patients.

Keywords: HER2, cervical cancer, tag SNP, polymorphism, susceptibility, survival


Cervical cancer (CCa) is the third most common and third lethal gynecologic cancer globally. In 2015, approximate 12,900 CCa incident cases and 4,100 deaths were reported in the U.S [1]. In China, CCa is the most severe genital malignancy cancer among women, with 98,900 incident cases and 30,500 deaths in the same year [2]. The squamous cervical carcinoma (SCCa), derived from squamous intraepithelial lesions (SILs), is the most frequent histological CCa type [3]. The human papillomavirus (HPV) has been the known factor for CCa incidence and mortality. However, HPV is only a necessary but insufficient factor for the onset and development of CCa. As reported previously, genetic variation, including single nucleotide polymorphism (SNP), also play an important role in the progression of CCa [4-6].

With the introduction of the cytological screening, CCa mortality rate has been substantially reduced in clinics. Recently, the investigations of CCa incident and treatment have been improved, and some ideal strategies have been figured out soundly. As described by Dueñas-Gonzalez et.al., pre-invasion lesions such as high-grade squamous intraepithelial lesions (including CIN2 and CIN3 could be the best targets for healing [7]. However, because early diagnosis and outcome of standard therapy of CCa is still unsatisfactory, the precious right time for CCa treatment is always wasted. Hence, there is an urgent need for more thorough and comprehensive understanding of the molecular mechanisms and corresponding biomarkers and targets for prediction, diagnose, treatment, and survival of the CCa susceptible population.

erb-b2 receptor tyrosine kinase 2 (ERBB2, more widely known as HER2), is one of the epidermal growth factor receptors. As a sensitive target for cancer therapy, its antibody, Herceptin, is widely recommended for breast cancer and CCa treatment with an eutherapeutic effect [8-11]. Therefore, HER2 is an ideal candidate to screen for genetic variability on CCa susceptibility and survival. In this study, we tested the effects of SNPs in HER2 exonic region in case-control study for susceptibility of CCa, and further longitudinal study for survival of the patients. The results of this study provide more evident molecular basis for both diagnosis and treatment of CCa in the Chinese populations.

Method and Materials

Ethic principle

The study was approved by the ethics committee of Jiangsu Provincial Center for Disease Control and Prevention (no.2012025), in accordance with the principles of the Helsinki Declaration. Each participant signed a written informed consent before donating 5 ml venous blood for further analyses.

Study population

413 CCa patients (confirmed with histopathological evidence) and 396 controls without history of gynecologic diseases were enrolled in this study. The patients (in the case group) were followed for the further survival study. All patients' survival information was collected using the medical insurance system during follow-ups. All patients were recruited from the first affiliated hospital of Soochow University and the Suzhou Center for Disease Prevention and Control between Match 2004 and Jan 2010, along with their corresponding demographic and/or clinical characteristics (including age, menarche age, menopause age, first birth age, smoking status, HPV status, menopausal status, family cancer history, histological types and cancer stage for patients). The control participants were free of cancer history, who participated in a community-based chronic disease program of Suzhou Center for Disease Prevention and Control during the same period as the cases were collected with the help of Liuhe Hospital Affiliated to Medical College of Yangzhou University. People who smoked daily for 1 year were defined as smokers [12]. All participants were genetically unrelated Han Chinese.

SNP selection criteria

We established the following three criteria to identify the target SNPs: a) located in exonic region of the HER2 gene; b) MAF (minor allele frequency) of Han Chinese in Beijing (HCB) > 0.05; c) a linkage disequilibrium value of r2 < 0.8 for each target SNPs.

DNA isolation and Genotyping

Genomic DNA was extracted from participants' peripheral venous blood by the QIAcube HT Plasticware with QIAamp 96 DNA QIAcube HT Kit (Qiagen, Dusseldorf, Germany) following the manufacturer's protocol and then stored at-80℃ before genotyping. The A260/A280 of the purified DNA, tested by the NanodropOneC Ultramicro ultraviolet spectrophotometer (ThermoFisher Scientific, Waltham, MA, USA), was between 1.8 and 2.0, indicating no external DNA contamination. The TaqMan SNP Genotyping Assay with ABI7900HT real-time PCR System (Applied Biosystems, Foster City, CA, USA) was used for genotyping HER2 polymorphisms. These samples were added in each plate for quality control of genotyping. Two staff operated the genotyping assay independently. More than 10% of the samples were randomly selected for validation, and the results were exactly same between the two sets of assays.

Construction of HER2 expression plasmid and transient transfection

The total cDNA sequence of HER2 was synthesized and constructed into the pIRES2-EGFP by Generay Company (Shanghai, China). And the single-point mutations were performed on the original plasmid to evaluate the impact of variants of both rs1136201 and rs1058808 by the same company. All plasmids were confirmed by DNA sequencing. After transformation and purification, these plasmids were transiently transfected into the HeLa cell line. Each kind of cells was seeded on 24-well plates overnight to ensure the sufficient amount of cells for further transfection. With the help of Lipofectamine 2000 (Invitrogen, Carlsbad, CA, USA), 0.8 μg of each plasmid were then transfected into HeLa cells, respectively. All the experiments were conducted by the same technician following standardized protocol, to eliminate the impact of inequable transfection efficiencies and the total amount of each plasmid. The expression of EGFP was tested as the internal control for transfections in each plate.

RNA expression and Western blot of HER2 expression plasmids

After transformation and purification, these plasmids were transiently transfected into the HeLa cell line. Each kind of cells was seeded on 24-well plates overnight to ensure the sufficient amount of cells for further transfection. With the help of Lipofectamine 2000 (Invitrogen, Carlsbad, CA, USA), 0.8 μg of each plasmid were then transfected into HeLa cells, respectively. All the experiments were conducted by the same technician following standardized protocol, to eliminate the impact of inequable transfection efficiencies and the total amount of each plasmid. The expression of EGFP was tested as the internal control for transfections in each plate.

RNA expression and Western blot of HER2 expression plasmids

After a 48h transfection, RNA and protein of HER2 were collected from each plate. The total RNA of cells was extracted by TRIzol reagent (Invitrogen, Carlsbad, CA, USA). Quantitative real-time PCR were performed by ABI7900 HTreal-time PCR System (Applied Biosystems) after reverse transcription, and the glyceraldehydes 3-phosphate dehydrogenase (GAPDH) was adopted as the internal control. The primer for HER2 and GAPDH were listed as follows: HER2 sense primer: 5′-CTGATGGGTTAATGAGCAAACTGA-3′, and HER2 antisense primer: 5′-CCAAATTCTGTGCTGGAGGTAGAG-3′; GAPDH sense primer: 5′-CCACCCATGG CAAATTCCATGGCA-3′, and GAPDH sense primer: 5′-TCTAGACGGCAGGTCAGGTCCACC-3′. All experiments were performed in triplicate, and the relative quantification of HER2 mRNA was calculated using the 2-ΔΔCt method.

Cells were harvested and washed with PBS and lysed in RIPA with protease and phosphatase inhibitors on ice and centrifugated at 4°C. The protein contents were determined using Bradford protein assay (Bio-Rad Hercules, CA, USA). Total protein (25 μg) of each sample transfected with different plasmids was separated by SDS-PAGE (12.5%), and then transferring onto PVDF membrane. After blocking by 5% low-fat powder for eliminating nonspecific binding, the membrane was incubated with primary antibody (dilution =1:1000, HER2 antibody, ab134182, Abcam, Cambridge, UK; dilution = 1:5000, GAPDH antibody, ab9485, Abcam) at 4°C overnight. In the second day, the transferred membrane was incubated with secondary antibody (dilution = 1:5000) for 2 h at 4℃. The Bio-rad ChemiDoc XRS+ system (Bio-Rad Hercules) was used to visualize the protein signals on the membrane.

Immunohistochemistry (IHC)

The IHC for HER2 was carried out on representative paraffin sections of CCa tissues. Immunohistochemical staining was performed by using the Boster SABC (rabbit IgG)-POD kit (Wuhan, China) according to the recommended protocol. The HER2 antibody (ab134182, Abcam) was used to incubate the preparing sections overnight at 4°C, and the 3, 3'-diaminobenzidine was used to get a brown precipitate for scoring. The evaluation of PSCA expression was performed by the Department of Pathology, the first affiliated hospital of Nanjing Medical University with a blind fashion by two independent experienced pathologists. The final HER2 score was calculated by multiplying the intensity and the percentage of positive cells. The categorization criteria were as follows: ≤ 3, negative or weak; > 3 and ≤6, moderate; > 6, strong.

Statistical Analysis

Goodness-of-fit χ2 test was adopted to test for the Hardy-Weinberg equilibrium (HWE). In the case-control study, the Student-t test and/or χ2 test were used to demonstrate the how distributions of demographic, clinical characteristics, and frequency of genotypes differ between case and control groups. Unconditional univariate and multivariate logistic regressions were applied to estimate the adjusted odds ratios (ORs), with 95% confidence intervals (CIs), which quantify the effects of the SNPs.

Furthermore, Kaplan-Meier estimator was computed to evaluate the effect of HER2 polymorphisms on CCa patients' survival, demographic, and clinical characteristics. Mean survival time (MSTb) was provided when MST could not be calculated. Final predictive factors of CCa patients' survival were revealed with the univariate or multivariate Cox regression by estimating the hazard ratios (HRs) and corresponding 95%CIs. The Cox step wise regression was performed for CCa prognosis, with a significant level of 0.05 for entering and 0.10 for removing the respective explanatory variables.


Characteristics of study participants

The characteristics of all participants, including 413 CCa patients (cases) and 396 controls, were provided in Table 1. There was no significant difference between case and control group in age (56.12 ±12.48 vs. 56.28 ± 11.91, case and control, respectively, P = 0.844), as well as in smoking status. However, the ages at menarche, menopause, first live birth showed significant differences between these two groups (P < 0.05). In clinical indices, the characters of HPV infection and family cancer history in patients dominated high proportions (87.65% vs. 80.30%, P < 0.001 and 67.31% vs. 32.69, P < 0.001, respectively). Also, in menopausal status (P = 0.007) and parity (P = 0.010), patients presented enormous discrepancies.

The survival information of the 413 patients was provided in Table 2. Among all the 413 CCa patients, 156 had passed away. There were no statistically significant association between MST (median survival time) and patients' age (log-rank P = 0.262), age at menarche (log-rank P = 0.884), age at menopause (log-rank P = 0.354), age at first live birth (log-rank P = 0.840), or smoking status (log-rank P = 0.053). On the other hand, there was significant association between menopausal status and CCa patients' survival (log-rank P = 0.023): the postmenopausal patients had a higher mortality rate than premenopausal ones (MST = 52.03, HR = 1.47, 95%CI = 1.06-2.04). Besides, there was also significant difference among histological types (log-rank P = 0.007).

Effects of HER2 polymorphisms on the risk of CCa in the case-control study

According to the SNP selection criteria we had mentioned above, there were only two candidate SNPs finally identified as our objects: rs1136201 and rs1058808 in the HER2 gene.

The frequencies of participants' genotypes confirmed the HWE (χ2 = 0.716, P= 0.437). There was no significant effect for either SNP (rs1136201 or rs1058088) in any model (Table 3). However, with the increase of alleles, these SNPs displayed their harmful (P trend = 0.036 for rs1136201) and protective (P trend = 0.012 for rs1058808) trends. The combined effects of these two SNPs were shown in Table 4. Participants with 3 variants in combination of rs1136201 and rs1058088 were associated with significantly higher susceptibility to CCa (OR = 1.98, 95%CI= 1.18-3.35). Although individuals having 4 variants showed no significant association with CCa occurrence, there was still a risky trend among individuals having the combination of these two SNPs (P trend = 0.002). Using 0-2 variants as the reference group, individuals with 3-4 variants of these two SNPs showed significantly higher susceptibility to CCa (P = 0.028, OR = 1.70, 95%CI = 1.06-2.74; Table 4).

The association between HER2 polymorphisms and CCa survival

Kaplan-Meier survival curve was constructed, and log-rank test were performed for the 413 patients (Table 5). In SNP rs1136201, the co-dominant model revealed significantly higher risk of death (HR = 1.53, 95%CI = 1.04-2.28) in AG/GG genotypes, which coincided with the hazardous effect of the G allele (log-rank P trend = 0.040). The Kaplan-Meier survival curves for rs1136201 and rs1058088 were showed in Figure 1A and 1B, respectively.

 Table 1

Demographic and Selected Variables in Cervical Cancer Cases and Controls

VariablesCases (n=413)Controls (n=396)Pa
Age, year (mean±SD)56.12±12.4856.28±11.910.844
Age at menarche, year (mean±SD)14.55±2.3614.84±1.780.006
Age at menopause, year (mean±SD)b49.75±2.8349.26±3.520.010
Age at first live birth, year (mean±SD)c25.36±1.7924.82±2.34<0.001
Smoking status
HPV infection
Menopausal status
Family history of cancer
Histological types
Squamous cell carcinoma34483.29
Adenosquamous carcinoma71.69

a two-side test. b Information was available in postmenopausal women (233 cases and 260 controls). c Information was available in 407 cases and 389 controls with parity. d CIN, cervical intraepithelial neoplasia.

The combined analysis results for rs1136201 and rs1058808 were shown in Table 6 and Figure 1C. The patients with 3 variants in these two polymorphisms had the shortest survival time (MST = 42.85) and the highest mortality rate (HR =2.42, 95%CI = 1.02-5.79). Group with 3-4 variants had much shorter MST and higher mortality rate (MST = 42.24, log-rank P = 0.009, HR = 1.74, 95%CI = 1.15-2.65), comparing to group with 0-2 variants (MST = 53.67, as the reference group).

 Table 2

Cervical cancer patients' characteristics and clinical features

VariablesPatients n=413 (%)Deaths n=156 (%)MST (months)aLog- rank PHR (95%CI)
Age (years)
≤55198 (47.94)77 (38.89)45.030.2621.00 (Ref.)
>55215 (52.06)79 (36.74)52.360.83 (0.60-1.15)
Age at menarche (years)
<15227 (54.96)85 (37.44)51.200.8841.00 (Ref.)
≥15186 (45.04)71 (38.17)52.351.02 (0.74-1.41)
Age at menopause (years)b
<50119 (51.07)42 (35.29)51.760.3541.00 (Ref.)
≥50114 (48.93)49 (42.86)52.631.17 (0.84-1.62)
Age at first live birth (years)c
<25190 (46.68)73 (38.02)52.530.8401.00 (Ref.)
≥25217 (53.32)81 (37.33)45.921.03 (0.75-1.42)
Smoking status
Smoker27 (6.54)7 (25.93)46.17d0.0531.00 (Ref.)
Nonsmoker386 (93.48)149 (38.60)51.752.14 (0.99-4.61)
HPV infection
Yes362 (87.65)142 (39.23)52.310.8191.00 (Ref.)
No51 (12.35)14 (27.45)43.771.07 (0.61-1.87)
Menopausal status
Premenopausal180 (43.58)60 (33.33)52.030.0231.00 (Ref.)
Postmenopausal233 (56.42)96 (41.20)45.141.47 (1.06-2.04)
0-1141 (34.14)60 (42.55)42.940.1161.00 (Ref.)
≥2272 (65.86)96 (35.29)52.380.77 (0.55-1.07)
Family history of cancer
Yes278 (67.31)107 (38.49)52.910.4921.00 (Ref.)
No135 (32.69)49 (36.30)51.900.89 (0.63-1.25)
Histological types
CIN3e12 (2.91)4 (33.33)32.69d0.0071.00 (Ref.)
Squamous cell carcinoma344 (83.29)141 (40.99)45.931.29 (0.47-3.53)
Adenocarcinomas50 (12.11)10 (20.00)51.05d0.52 (0.16-1.72)
Adenosquamous carcinoma7 (1.69)1 (14.29)41.00d0.44 (0.05-3.98)
CIN3e4 (0.97)3 (75.00)56.620.1741.00 (Ref.)
I101 (24.46)44 (43.56)44.311.32 (0.38-4.55)
II238 (57.63)87 (36.55)52.121.10 (0.33-3.71)
III65 (15.74)21 (32.31)51.010.81 (0.22-2.89)
IV5 (1.21)1 (20.00)52.00
Yes273 (66.10)99 (36.26)52.690.4561.00 (Ref.)
No140 (33.90)57 (40.71)44.351.13 (0.81-1.58)

a MST: median survival time; b Information was available in 91/233 (deaths/patients) postmenopausal women; c Information was available in 153/407 (deaths/patients) cases with parity; d Mean survival time was provided when MST could not be calculated; e CIN, cervical intraepithelial neoplasia.

 Table 3

Genotype and allele frequencies of rs1136201 and rs1058808 polymorphisms among cervical cancer cases and controls

GenotypeCases (n=413)Controls (n=396)PaAdjusted OR (95%CI)b
AA21852.7823759.851.00 (Ref.)
AG16138.9813534.090.1261.39 (0.91-2.12)
GG348.23246.060.1691.66 (0.80-3.44)
AG+GG19547.2215940.150.0741.44 (0.96-2.14)
G allele22927.7218323.110.0691.33 (0.98-1.81)
P trend0.036
GG17241.6513133.081.00 (Ref.)
CG18143.8319248.480.1040.70 (0.45-1.08)
CC6014.537318.430.1120.62 (0.35-1.12)
CG+CC24158.3526566.920.0590.68 (0.45-1.02)
C allele30136.4433842.680.0670.77 (0.58-1.02)
P trend0.012

a two-side chi-square test. b Adjusted for age, age at menarche, age at menopause, age at first live birth, smoking status, menopausal status, parity and family history of cancer.

 Table 4

Frequency distributions of the combined genotypes of rs1136201 and rs1058808 polymorphisms among the cases and controls, and their correlation to risk of cervical cancer

GenotypeCases (n=413)Controls (n=396)PaAdjusted OR (95%CI)b
Number of risk allelesc
04210.175213.130.012 1.00 (Ref.)
110525.4212130.561.22 (0.60-2.46)
216138.9815940.151.52 (0.78-2.97)
39322.525814.652.23 (1.02-4.91)
4122.9161.524.48 (0.94-21.29)
P trend0.002
Recombined groupsc
0-230874.5833283.841.00 (Ref.)
3-410525.426416.160.028 1.70 (1.06-2.74)

a two-side chi-square test. b Adjusted for age, age at menarche, age at menopause, age at first live birth, smoking status, menopausal status, parity and family history of cancer. c The 0-4 represents the numbers of risk alleles within the combined genotypes; the risk alleles used for the calculation were the rs1136201 G and rs1058808 G alleles.

 Table 5

Genotypes of rs1136201 and rs1058808 polymorphisms and cervical cancer survival

[n=413 (%)]
[n=156 (%)]
MST (months)aLog- rank PHR (95%CI)b
AA218 (52.78)75 (34.40)53.961.00 (Ref.)
AG161 (38.98)64 (39.75)44.450.0521.51 (1.00-2.30)
GG34 (8.23)17 (50.00)43.240.2751.52 (0.72-3.21)
AG+GG195 (47.22)81 (41.54)44.280.0371.53 (1.03-2.28)
P trend0.040
GG172 (41.65)79 (45.93)45.341.00 (Ref.)
CG181 (43.83)62 (34.25)52.140.5580.88 (0.56-1.36)
CC60 (14.53)15 (25.00)59.160.0280.40 (0.18-0.90)
CG+CC241 (58.35)77 (31.95)52.090.1890.75 (0.49-1.15)
P trend0.140

a MST: median survival time. b Adjusted for age, age at menarche, age at menopause, age at first live birth, smoking status, menopausal status, parity and family history of cancer.

The stratified analysis and Cox regression model for survival in CCa patients

Based on the significant difference between 0-2 variants group and 3-4 variants group in the CCa survival study (see above paragraph), we validated the impacts of HER2 polymorphisms on CCa survival. The results were shown in Table 7. 3-4 SNP variants more substantially impacted the subgroups of age above 55 (log-rank P= 0.004, HR=2.06, 95%CI = 1.26-3.37), menarche age below 15 (log-rank P = 0.020, HR = 1.99, 95%CI = 1.11-3.56), menopause age below 50 (log-rank P = 0.016, HR= 1.71, 95%CI = 1.10-2.64), first live birth age below 25 (log-rank P =0.017, HR =2.14, 95%CI = 1.15-4.01), and non-smokers (log-rank P = 0.045, HR = 1.56, 95%CI = 1.01-2.42). In clinical, the combined perniciousness of HER2 SNP variants existed in HPV infection group (log-rank P =0.018, HR = 1.69, 95%CI = 1.09-2.61), ≥2 parity (log-rank P = 0.003, HR = 1.76, 95%CI = 1.08-2.86), adenocarcinomas (log-rank P =0.004, HR = 21.12, 95%CI = 2.72-163.66), and clinical stage II of CCa (log-rank P = 0.008, HR = 2.24, 95%CI = 1.23-4.07; Table 7). Considering all potential demographic characters, clinical feature, and combination of HER2 polymorphisms (rs1136201 and rs1058808), four variables: smoking status (P = 0.024), menopausal status (P = 0.020), histological types (P = 0.006), and number of variants (P =0.025) were selected based on the Cox regression model (Table 8).

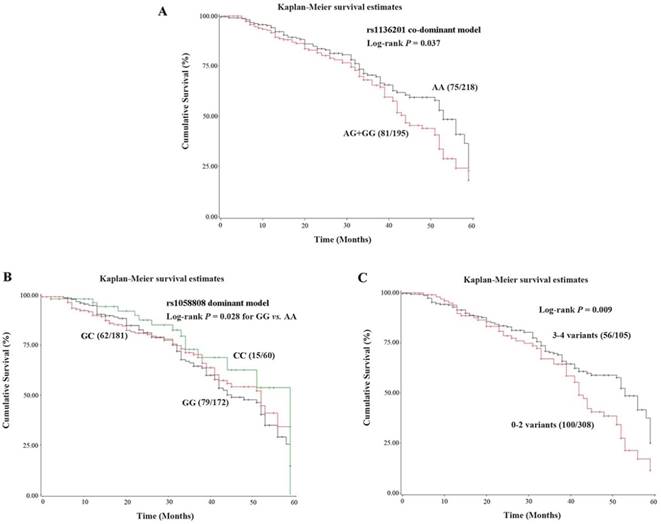

 Figure 1

The Kaplan-Meier survival curves of HER2 polymorphisms. (A). Co-dominant model of rs1136201; (B). Dominant model of rs1058808; (C).Combined analysis of rs1136201 and 1058808.

J Cancer Image (Click on the image to enlarge.)

The functional analysis of HER2 polymorphisms and HER2 expression

After the population study of HER2 polymorphisms, we further investigated the biological function of these two SNPs. As shown in Figure 2A and 2B, both mRNA level and protein level of HER2 expression plasmid and its corresponding mutations of rs1136201 and rs1058808 displayed that plasmids with rs1058808 G allele was associated with higher products of HER2 in Hela cell lines (P < 0.001), but those with rs1136201 genotype did not influence the expression of HER2 (P = 0.198) (Figure 2A and B). Based on these consequences, we performed the further IHC assay of HER2 in CCa tissues. We firstly genotyped the SNP rs1058808 in 157paraffin sections of CCa tissues, and the frequency distribution of GG, CG, and CC genotype was 58,66 and 33, respectively.

 Table 6

Frequency distributions of the combined genotypes of rs1136201 and rs1058808 polymorphisms in cervical cancer patients, and their correlation to survival of cervical cancer patients

[n=413 (%)]
[n=156 (%)]
MST (months)aLog- rank PHR (95%CI)b
Number of risk allelesc
042 (10.17)13 (30.95)51.240.0141.00 (Ref.)
1105 (25.42)30 (28.57)56.791.12 (0.44-2.82)
2161 (38.98)57 (35.40)52.571.25 (0.50-3.08)
393 (22.52)50 (53.76)42.852.42 (1.02-5.79)
412 (2.91)6 (50.00)454.54 (0.42-48.88)
P trend0.018
Recombined groupsc
0-2308 (74.58)100 (32.47)53.670.0091.00 (Ref.)
3-4105 (25.42)56 (53.33)42.241.74 (1.15-2.65)

a MST: median survival time. b Adjusted for age, age at menarche, age at menopause, age at first live birth, smoking status, menopausal status, parity and family history of cancer. c The 0-4 represents the numbers of risk alleles within the combined genotypes; the risk alleles used for the calculation were the rs1136201 G and rs1058808 G alleles.

 Table 7

Stratified analysis of different number of risk alleles associated with cervical cancer patients' survival

VariablesNumber of risk allelesa
Log- rank PHR (95%CI)b
Age (years)
≤5550/14925/490.8420.90 (0.31-2.58)
>5548/15931/560.004 2.06 (1.26-3.37)
Age at menarche (years)
<1554/16921/580.020 1.99 (1.11-3.56)
≥1546/13925/470.1791.52 (0.83-2.79)
Age at menopause (years) c
<5027/9115/280.016 1.71 (1.10-2.64)
≥5031/8118/330.2721.38 (0.78-2.44)
Age at first live birth (years) d
<2548/14524/450.017 2.14 (1.15-4.01)
≥2550/15831/590.4701.24 (0.70-2.20)
Smoking status
Smoker2/175/100.2255003.51 (0.00-4.70E9)
Nonsmoker98/29151/950.045 1.56 (1.01-2.42)
HPV infection
Yes90/26552/970.018 1.69 (1.09-2.61)
No10/434/80.4362.43 (0.26-22.61)
Menopausal status
Premenopausal41/13619/440.1251.82 (0.85-3.91)
Postmenopausal59/17237/610.0521.70 (1.00-2.91)
0-143/10717/340.9931.00 (0.45-2.19)
≥257/20139/710.003 2.21 (1.31-3.74)
Family history of cancer
Yes68/20539/730.024 1.76 (1.08-2.86)
No32/10317/320.2001.74 (0.75-4.04)
Histological types
Squamous cell carcinoma92/25149/930.2611.30 (0.82-2.04)
Adenocarcinomas5/405/100.004 21.12 (2.72-163.66)
Adenosquamous carcinoma1/70/0--
I30/7514/260.5011.34 (0.57-3.11)
II56/18331/550.008 2.24 (1.23-4.07)
III12/449/210.4080.53 (0.12-2.41)
Yes65/21034/630.1671.51 (0.84-2.73)
No35/9822/420.1181.76 (0.87-3.59)

a The 0-4 represents the numbers of risk alleles within the combined genotypes; the risk alleles used for the calculation were the rs1136201 G and rs1058808 G alleles.

b Adjusted for age, age at menarche, age at menopause, age at first live birth, smoking status, menopausal status, parity and family history of cancer.

c Information was available in 91/233 (deaths/patients) postmenopausal women.

d Information was available in 153/407 (deaths/patients) cases with parity.

e CIN, cervical intraepithelial neoplasia.

 Table 8

Results of stepwise Cox regression analysis of cervical cancer survival

Smoking status (Nonsmoker vs. Smoker)0.890.392.441.13-5.290.024
Menopausal status (Postmenopausal vs. Premenopausal)0.390.171.481.06-2.060.020
Histological types (CIN3a vs. Squamous cell carcinoma vs. Adenocarcinomas vs. Adenosquamous carcinoma)0.560.201.751.71-2.610.006
Number of risky allelesb (3-4 vs. 0-2)0.380.171.471.05-2.050.025

a CIN, cervical intraepithelial neoplasia. b The 0-4 represents the numbers of risk alleles within the combined genotypes; the risk alleles used for the calculation were the rs1136201 G and rs1058808 G alleles.

The results of HER2 IHC staining in CCa tissues with different genotypes of HER2 rs1058808 was shown in Figure 2C. And the corresponding competetion of scores among GG, CG and CC were listed in Figure 2D. The dramatic significance between GG, CG and CC (average staining score: 6.12 vs. 3.59 vs. 1.79, P < 0.001 for One-way ANOVA) also suggested the transcriptional function of HER2 rs1058808 in CCa.


In this study, we have demonstrated that the combination of the HER2 exonic SNPs (rs1136201 and rs1058808) was significantly associated with cervical carcinogenesis in the Chinese Han population. Besides, AG/GG genotype of rs1136201 conspicuously impacted the survival time of CCa patients, and combined model of above two SNPs also emerged its hazard and independence in CCa patients' survival. Therefore, these results have revealed the potential predictive and diagnostic values for the HER2 SNPs in CCa.

The HER2 gene, located in the 17th chromosome, usually acts as an oncogene and is closely related to the dysregulation of cell growth, differentiation, migration, and even apoptosis [13, 14]. In the gynecologic oncology, the amplification or over-expression of HER2 has been detected in approximately 20% to 30% of breast cancer patients [15, 16]. In ovarian cancer patients, HER2 is also reported to induce poorer clinical outcomes and survival [17, 18]. Therefore, HER2 testing have become a standard procedure in feminine tumors; the corresponding HER2-targeted medicines (such as Herceptin or Trastuzumab) is provided as specific remedies, and some studies demonstrates its significant effects on tumor suppress [19-21]. Although evidences haven shown that overexpression of HER2 is also present in CCa patients [22], the anti-HER2 therapy does not draw enough attention. According to a previous report from Doo-Yi Ohet al., the treatment of HER2 could be considered as a novel and efficient target for CCa, especially the patient-derived xenograft model [11].

Both rs1136201 and rs1058808 SNPs have been deeply investigated for the occurrence, development and survival of several carcinomas [23-25]. rs1136201, also named HER2 Ile655Val, locates within a consensus sequence that encodes the TM helix segment's N-terminus. Variant of rs1136201 might lead to destabilization of the active HER2 heterodimers, consequently increases signal transduction for HER2 expression, and finally stimulates kinase activity and malignant transformation [26, 27]. Although the function of HER2 exonic polymorphism is clear, the association between HER2 SNP rs1136201 and CCa is still controversial [28,29]. Our results show that rs1136201 alone does not significantly influence the risk of CCa, which coincide to the previous report in a Japanese population [28]; however our results do not align with the population in Poland [29]. Such difference might be due to the distinction of Asian and Caucasian populations. As for the combined effect of rs1136201 and rs1058808, the patients with three or even more variants showed significantly higher risk of CCa (P = 0.028, OR = 1.70, 95%CI = 1.06-2.74 in Table 4). This finding suggests that there might be synergistic interaction between these two SNPs.

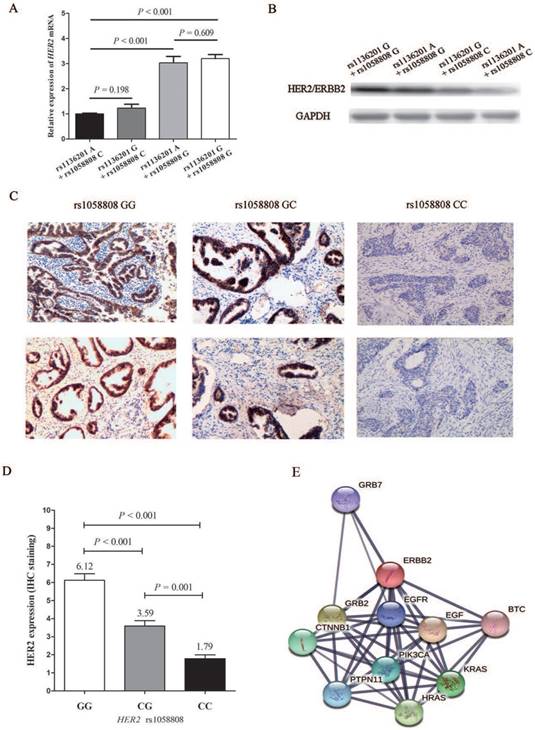

 Figure 2

The functional analysis of HER2 polymorphisms. (A).Expression of HER2 mRNA levels in Hela cell lines transfected with different HER2 expression plasmids. (B). Expression of HER2 protein levels in Hela cells transfected with different HER2 expression plasmids. (C). Immunohistochemical staining of HER2in human cervical cancer tissues with different rs1058802 genotype. (D). Prediction of HER2 possible pathway and corresponding associated genes.

J Cancer Image (Click on the image to enlarge.)

For the survival of CCa, we have demonstrated that patients with rs1136201 AG/GG genotypes (1.53-fold, MST = 44.28) had significantly higher mortality rate and shorter survival time. And patients with such genotype with 3-4 variants of rs1136201 and rs1058808 face further risk of CCa, especially in adenocarcinomas (HR = 21.12). The Cox regression analysis of CCa has also identified the role of joint genotypes of HER2 polymorphisms, which could be a potential indicator for poor CCa survival. However, the HPV infection is not a significant factor according to the results of Cox regression, which suggests that HPV infection is an incentive for the onset of CCa but not an important (oreven determinant) factor for the CCa survival.

In functional analysis, the corresponding assays displayed that the variant of G allele of rs1058808 significantly decreased the expression of HER2 in both mRNA level and protein level, but variant of rs1136201 did not emerge any strong transcriptional activity (Figure 2A and B). These results partly coincided with the data reported by Suet al. [30]. Beyond our expectations, the combine effect of rs1058808and rs1136201 did not reflect on expressions of HER2 (both mRNA and protein levels, Figure 2A and B), when we transfected cells with plasmids including different alleles of these two SNPs. As some mutations could influence the protein dynamics or mis-folding instead of the its expression [31-33], it was rational to hypothesis that the variant of rs1136201 could also perform its function in a special method. Therefore, the further investigation of rs1136201 was expected. Finally, we detected the possible signal pathway involving in HER2 (Figure 2E), the string software (https://string-db.org/) reminded us that the HER2 was closely associated with GRB7, EGFR, EGF, PIK3CA, HRAS, KRAS, PTPN11, CTNNB1, GRB2 and BTC genes; a deep research of SNPs on the interactivity of these genes will be helpful to re-discover the importance of these SNPs, including rs1058808 and rs1136201.

There are, however, some limitations in this study. First, all the patients have been recruited in the hospital. Thus, the results and conclusions from this study should be further validated with larger sample sizes from other study areas and populations. Second, environmental factors, such as diet and physical activity, have not been considered in our study because of the lack of detailed background information of the participants. These factors may also influence CCa occurrence and/or survival. Finally, as a retrospective hospital-based study, the inherent selection bias should not be neglected.


In conclusion, this study demonstrated that CCa risk was associated with either HER2 polymorphism (rs1136201 and rs1058808) alone, but the combination of these two SNPs significantly aggravated the onset of CCa. Besides, combination of rs1136201 and rs1058808 significantly jeopardized the survival of CCa patients, and would further reduce CCa survival rate and shorten MST.


This study was supported by the National Science Foundation for Young Scientists of China (81602919, 81502796, and 81703201), Natural Science Foundation for Young Scientists of Jiangsu Province (BK20171076), Suzhou Key Technology Support Program (SS201111), Jiangsu Provincial Medical Innovation Team (CXTDA2017029), the Jiangsu Provincial Medical Youth Talent (QNRC2016548, QNRC2016536 and QNRC2016231), the 9th Suzhou Special projects for industrial and technological innovation (SYS201581), the project of Jiangsu province preventive medicine (Y2015019), the Key technology in prevention and control of serious diseases and infectious diseases (Gwzx201601), the Program of Jiangsu Preventive Medicine Association (Y2018086), the Lifting Program of Jiangsu Provincial Scientific and Technological Association, and the Jiangsu Government Scholarship for Overseas Studies.

Competing Interests

The authors have declared that no competing interest exists.


1. Siegel RL MK, Jemal A. Cancer statistics, 2015. CA Cancer J Clin. 2015;65:5-29

2. Chen W, Zheng R, Baade PD. et al. Cancer statistics in China, 2015. CA Cancer J Clin. 2016;66(2):115-132

3. Wells M, Östor AG, Crum CP. et al. Tumors of the uterine cervix: Epithelial tumors. In World Health Organization Classification of Tumours: Pathology and Genetics of Tumours of the Breast and Female Genital Organs. WHO, IARC Press, Lyon. 2003:262-279

4. Hasan S, Hameed A, Saleem S. et al. The association of GSTM1 and GSTT1 polymorphisms with squamous cell carcinoma of cervix in Pakistan. Tumour biology: the journal of the International Society for Onco developmental Biology and Medicine. 2015;36(7):5195-5199

5. Jeon YT, Kim JW, Song JH. et al. Cyclin D1 G870 A polymorphism and squamous cell carcinoma of the uterine cervix in Korean women. Cancer letters. 2005;223(2):259-263

6. Sobti RC, Shekari M, Kordi Tamandani DM. et al. Effect of NBS1gene polymorphism on the risk of cervix carcinoma in a northern Indian population. The International journal of biological markers. 2008;23(3):133-139

7. Duenas-Gonzalez A, Cetina L, Mariscal I. et al. Modern management of locally advanced cervical carcinoma. Cancer treatment reviews. 2003;29(5):389-399

8. Pohlmann PR, Mayer IA, Mernaugh R. Resistance to Trastuzumab in Breast Cancer. Clinicalcancer research: an official journal of the American Association for Cancer Research. 2009;15(24):7479-7491

9. Slamon DJ, Leyland-Jones B, Shak S. et al. Use of chemotherapy plus a monoclonal antibody against HER2 for metastatic breast cancer that overexpresses HER2. The New England journal of medicine. 2001;344(11):783-792

10. Bellone S, Palmieri M, Gokden M. et al. Selection of HER-2/neu-positive tumor cells in early stage cervical cancer: implications for Herceptin-mediated therapy. Gynecologic oncology. 2003;91(1):231-240

11. Oh DY, Kim S, Choi YL. et al. HER2 as a novel therapeutic target for cervical cancer. Oncotarget. 2015;6(34):36219-36230

12. Wang S, Tang J, Wang M. et al. Genetic variation in PSCA and bladder cancer susceptibility in a Chinese population. Carcinogenesis. 2010;31(4):621-624

13. Garcia-Castillo J, Pedersen K, Angelini PD. et al. HER2 carboxyl-terminal fragments regulate cell migration and cortactin phosphorylation. The Journal of biological chemistry. 2009;284(37):25302-25313

14. FaltusT Yuan J, Zimmer B et al. Silencing of the HER2/neu gene by siRNA inhibits proliferation and induces apoptosis in HER2/neu-overexpressing breast cancer cells. Neoplasia. 2004;6(6):786-795

15. Kim MM, Allen P, Gonzalez-Angulo AM. et al. Pathologic complete response to neoadjuvant chemotherapy with trastuzumab predicts for improved survival in women with HER2-overexpressing breast cancer. Annals of oncology: official journal of the European Society for Medical Oncology / ESMO. 2013;24(8):1999-2004

16. Slamon DJ, Clark GM, Wong SG. et al. Human breast cancer: correlation of relapse and survival with amplification of the HER-2/neu oncogene. Science. 1987;235(4785):177-182

17. Cai Y, Wang J, Zhang L. et al. Expressions of fatty acid synthase and HER2 are correlated with poor prognosis of ovarian cancer. Medical oncology. 2015;32(1):391

18. Chao WR, Lee MY, Lin WL. et al. HER2 amplification and overexpression are significantly correlated in mucinous epithelial ovarian cancer. Human pathology. 2014;45(4):810-816

19. Vogel CL, Cobleigh MA, Tripathy D. et al. Efficacy and safety of trastuzumab as a single agent in first-line treatment of HER2-overexpressing metastatic breast cancer. Journal of clinical oncology: official journal of the American Society of Clinical Oncology. 2002;20(3):719-726

20. Wilken JA, Webster KT, Maihle NJ. Trastuzumab Sensitizes Ovarian Cancer CellstoEGFR-targeted Therapeutics. Journal of ovarian research. 2010;3:7

21. Heyerdahl H, Krogh C, Borrebaek J. et al. Treatment of HER2-expressingbreastcancer and ovarian cancer cells with alpha particle-emitting 227Th-trastuzumab. International journalof radiation oncology, biology, physics. 2011;79(2):563-570

22. Monk BJ, Mas Lopez L, Zarba JJ. et al. Phase II, open-label study of pazopanib or lapatinib monotherapy compared with pazopanib plus lapatinib combination therapy in patients with advanced and recurrent cervical cancer. Journal of clinical oncology: official journal of the American Society of Clinical Oncology. 2010;28(22):3562-3569

23. Ananiev J, Aleksandrova E, Skerleva D. et al. Impact of HER2 codon 655 polymorphism and expression of HER2 and HER3 in non small cell lung cancer patients. Wiener medizinische Wochenschrift. 2015;165(15-16):315-321

24. Watrowski R, Castillo-Tong DC, Schuster E. et al. Association of HER2 codon 655 polymorphism with ovarian cancer. Tumour biology: the journal of the International Society for Onco developmental Biology and Medicine. 2016;37(6):7239-7244

25. Satiroglu-Tufan NL, Bir F, Calli-Demirkan N. Investigation of HER-2 codon 655 single nucleotide polymorphism frequency and c-ErbB-2 protein expression alterations in gastric cancer patients. World journal of gastroenterology. 2006;12(20):3283-3287

26. Fleishman SJ, Schlessinger J, Ben-Tal N. A putative molecular-activation switch in the transmembrane domain of erbB2. Proceedings of the National Academy of Sciences of the United States of America. 2002;99(25):15937-15940

27. Sternberg MJ, Gullick WJ. A sequence motif in the transmembrane region of growth factor receptors with tyrosine kinase activity mediates dimerization. Protein engineering. 1990;3(4):245-248

28. Ueda M, Hung YC, Terai Y. et al. HER-2 codon 655 polymorphism in cervical carcinogenesis. International journal of gynecological cancer: officialjournal of the International Gynecological Cancer Society. 2006;16(1):325-328

29. Kruszyna L, Lianeri M, Roszak A. et al. HER2 codon 655 polymorphism is associated with advanced uterine cervical carcinoma. Clinical biochemistry. 2010;43(6):545-548

30. Su Y, Jiang Y, Sun S. et al. Effects of HER2 genetic polymorphisms on its protein expression in breast cancer. Cancer epidemiology. 2015;39(6):1123-1127

31. Larif S, BenSalem C, Soua Z. et al. Insight into TPMT (*)23 mutation mis-folding using molecular dynamics simulation and protein structure analysis. Journalofbiomolecular structure & dynamics. 2013;31(10):1066-1076

32. Lam AR, Teplow DB, Stanley HE. et al. Effects of the Arctic (E22->G) mutation on amyloid beta-protein folding: discrete molecular dynamics study. Journal of the American Chemical Society. 2008;130(51):17413-17422

33. Peng XN, Wang J, Zhang W. Molecular dynamics simulation analysis of the effect of T790M mutation on epidermal growth factor receptor protein architecture in non-small cell lung carcinoma. Oncology letters. 2017;14(2):2249-2253

Author contact

Corresponding address Corresponding authors: Ming Xu, M.D. & Ph. D. Department of OccupationalDisease Prevention, Jiangsu Provincial Center for Disease Control and Prevention.No.172 Jiangsu Road, Nanjing 210009, China. Tel: +86-025-85393212; Fax: +86-025-85393212; E-mail:sosoloucom and Fang Liu, Prof. Institute of Suzhou Biobank, SuzhouCenter for Disease Prevention and Control. No.72 Sanxiang Road, Suzhou 215004, China. Tel: +86-0512-68262371; Fax: +86-0512-68262376; E-mail: liufangszCDCnet

Received 2018-6-19
Accepted 2018-10-3
Published 2019-1-1
